How to create an independent backup network

How to create an independent backup network

Today we look at independent backup networks especially in regards to LTO 7 and VMware ESX hosts. Be aware – this very example also applies to any backup to disk (B2D / Backup-2-Disk) solution. But a good reseller / vendor would inform you about this right away anyways.

LTO 7 and later like LTO 8 drives have a write speed faster then a 1 GBit network can handle, making it now really necessary to think about options. On top of it, you do not want to over utilize the LAN side of your servers so that the impact on the user / application facing side stays minimal. This leaves you with two options, you can group switch ports assuming you have enough 1 GB ports and use them, you will need at least 3 ports combined, or you create a whole backup network on a 10 GB basis.

Let’s run some numbers:

  • LTO7 has a write speed of about 300 MB/s uncrompressed and up to 750 MB/s compressed
  • LTO8 (L8) has a write speed of about 360 MB/s uncrompressed and up to 900 MB/s compressed

Now – your network connection is meassured in MBit/s not MByte/s. Byte to bit is 8 bit are one byte, so we need to multiply those speeds in byte with 8 bit too see the network speed numbers.

  • LTO7 uncrompressed = 300MB/s * 8 = 2400 MBit/s
  • LTO7 compressed = 750MB/s * 8 = 6000 MBit/s
  • LTO8 uncrompressed = 360MB/s * 8 = 2880 MBit/s
  • LTO8 compressed = 900MB/s * 8 = 7200 MBit/s

Assuming you want to go with grouped ports, you see that with LTO7 you would need 6 ports and LTO8 7 to 8 ports to fully utilize the speed and minimize your backup window. Additionally think about the read speed that might affect you as well – not just for recovery but for the verify of your backup.

Now – this means – add at least one 10 GB switch and one 10 GB NIC to each server – let’s do this with an example:

  • 3x VMware ESX hosts – LAN side and management is configured 1 GB – we assume there is some kind of storage behind them that has the iOPS and speed we need like an SSD based storage
  • 1x Backup media server that has an LTO7 or LTO8 drive connected – 1 GB on the LAN side

What we need – minimal:

  • 4x 10 GB NICs
  • 1x 10 GB switch
  • 4x CAT6e or CAT7 cables

What I would recommend – nice to have:

  • 4x 10 GB NICs – dual port
  • 2x 10 GB switches
  • 10x CAT7 cables – 2x to stack/trunk the switches if not stacked otherwise

This is a nice to have – a fail-over, but the minimal configuration is sufficient as well.

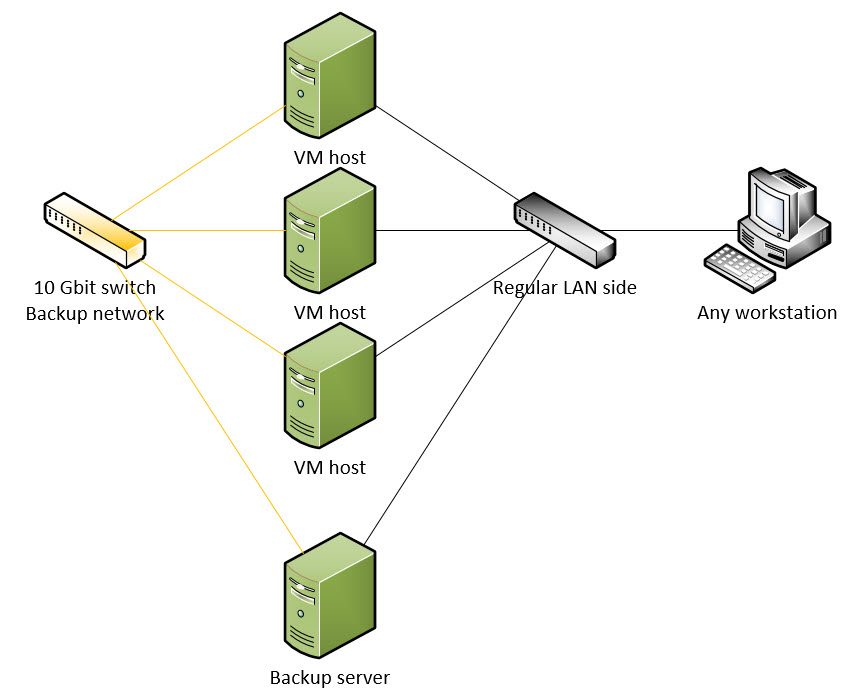

Cable this all in – create a new IP-scope / VLAN on the backup side – you do not need any default Gateway etc. on the Backup-Network side (10 GB). Just an independent IP scope and have every host assigned a static address.

This keeps the regular network traffic and any broadcasts away from this network and your backup will run totally independent. You might need to disable your anti-virus solution on this NIC / IP-scope on the backup media server as well, cause it might actually influence the speed quite drastically. Having it separated and independent helps keeping the security up.

On the VMware hosts – I like to even allow VMware to vMotion on this backup-LAN – simply because it is extremely efficient there – independent from your LAN and if you have it from your iSCSI network as well. But that’s just an idea.

Now – the backup – how will it grab the data from the 10 GB side of your VMware hosts – especially if you have a vSphere cluster and grab the backup through the cluster?

Simple – you adjust the hosts file on your media server. Each and every VMware host needs to be listed in the hosts-file on the media server with the IP that it has in your 10 GB backup network. This way DNS and everything will act normal in your environment, only the backup-media server will reach out to those hosts on the 10 GB network due to the IP resolution of those hosts. This is the easiest way to accomplish this.

You will not to add a 10 GB connection, backup-network IP address etc. to your VMware vSphere controller – it can stay on your LAN or server-management network as is. This also means there is no reason to mention him in the hosts file on the media server.

How this works:
your backup will contact the vSphere controller on the LAN side
it will then be redirected to the host that currently holds the VM you want to backup
the media server now will contact the VMware host directly – due to the hosts-file entry on the 10 GB backup-network
backup will process…

This of course would work with a physical server as well – like a physical file-server etc. – though, today this is rather rare and especially VMware backups are actually large files that benefit most from the LTO7 write speed so the above makes sense there most. It wouldn’t matter if you do the same to an Hyper-V environment or any other VM host/guest solution. In theory it should always work the same.

What real world write speeds can you expect?
This is the big question – here are some real world examples of this – those are single jobs on per VM basis, meaning it includes even the tape-load and tape-unload processing time and udpating the catalogs while using Veritas Backup Exec.

Backup size (VM size)elapsed time in minutesjob rate write/overalljob rate verify
4 TB6:4717,227 MB/min26,404 MB/min
2 TB6:476,822 MB/min22,233 MB/min
1.21 TB3:498,271 MB/min20,235 MB/min
147 GB0:336,491 MB/min22,655 MB/min
138 GB0:1718,403 MB/min27,726 MB/min
25 GB0:109,172 MB/min20,700 MB/min

The above list is just an example – realistically we see speeds between about 3,000 MB/min to 18,000 MB/min as for the overall speed. This is due to the VM itself for some part – thin or thick provisioned, what kind of data is it holding, how busy is the host cause we might double trouble him due to multiple drives doing backups at the same time to the same host etc… In average we see around 8,000 to 9,000 MB/min in speed, what is still great – and I wanted to show as well that it can vary quite a bit so don’t be scared. We still did improve the time the backup took from going from an LTO4 LAN based backup scenario to an LTO7 independent backup network while cutting the time in half, actually, even less then half. The slowest speeds we see today are due to systems that can only be backed up on the LAN side, while the ports are grouped there but we still don’t have the same speed as we see on the backup-network side. Many factors come in play but that all depends on the individual situation.

Hoping the information above helps some of you out there – keep in mind that your situation might be different, run some examples and ideas and if you have questions, reach out – this remains an example of what I really implemented at a company and how it affected the backup configuration and management.

September 4, 2018 by configuration recommendations solutions

Print Server backup script

Print Server backup script

Print servers need to backed up. This is because of two main reasons. One is that users heavily depend on printers and a not properly working print server will cause imediate helpdesk tickets and unhappy users. The other one is that installing a new driver, might it be a new version, a new model or even an additional manufacturer, can cause other print drivers to act up or even stop working – many administrators know and fear that.

Windows server actually allows you to backup the current print drivers, installed printers and their configuration. You can use this to migrate your printers or to back them up. Of course, you can simply depend on e.g. VMware snapshots, storage level snapshots or other backups of your server. But you also could just export the whole print server configuration while using the scripts below. Those will actually call the Windows API to back up the printers and store it all in a file that you can keep centrally. You don’t just rely on snapshots or a full server backup for e.g. your SQL databases as well, do you?

The script uses a .CMD file that will execute the actual backup and send a email report, while using the SMTPSEND program from Michael Kocum (https://www.dataenter.com/download.asp) for this since I already ad it flying around – you could replace the mail send option with another prepared SMTPSEND client, a VBS script or just remove it completely. Additionally there is a .VBS script that will do a clean up of the target backup files depending on the age of the files in the specified directory.

All the parameters are explained and set in the top part of the .CMD file – I therefor will not explain them here again – you should not need to modify the scripts by default – but feel free to do so. Of course, you should create a scheduled task and execute the .CMD periodically. This can save you time and headache in case you have a malfunctioning print server system. The restore can be easily done through the Print Management MMC that Windows provides you, cause the actual backup files are createed using the same Windows APIs. Your end users will be happy that their printers got back to work in no time, hopefully.

June 27, 2018 by recommendations scripts server solutions

Script based SQL Express backups

Script based SQL Express backups

SQL Express is widely used but has huge downside, there is no SQL Agent available. Even Windows internal databases, especially WSUS / Windows Update Services / Microsoft Update Services are in the end SQL Express like databases that do not have a SQL Agent.

Now, you can have central SQL Servers with Agents have them backed up – and I recommend on doing so if possible. But for the many times this is not possible, you will need to find another way to create those nice little .BAK files for SQL internal backups aka. SQL Maintenance Plan Backups. To work around this issue, I once wrote a script that automates this for each database found on a specific SQL server. It creates the backups via SQLCMD commands and even does a clean up of obsolete files (files older than x days), almost like SQL Maintenance Plans do it.

The script is divided in to a .CMD file that executes the actual backup and where you set the configuration/parameters and a .VBS file that is controlled by the actual .CMD script and will perform the backup cleanup. In the end you can have the .CMD send a email report – I used the SMTPSEND program from Michael Kocum (https://www.dataenter.com/download.asp) for this since I already ad it flying around – you could replace the mail send option with another prepared SMTPSEND client, a VBS script or just remove it completely.

Adjusting the settings / parameter:

This is all done in the SQLBACKUP.CMD file – the header section pretty much will explain all you need to know, from SQL Server to SQL-User and Password over Mail-Server to recipients.

If you want to execute the SQLBackups as the Windows-User that is executing the script, you need to exchange the REM (remarks) for the following two lines further down in the scripts. I apologize for the inconvenience, this is a old script I never updated to have those settings in the header (more automated), I always just changed the lines.

Everything else should be rather easy. Of course you will need sufficient access rights to the SQL databases and your destination backup folder. The task-scheduler might work best if you execute the script with “cmd /c c:\scripts\sqlbackup.cmd” (change the path as you need it) and set the working directory / startup folder right. It might help to execute the task with elevated rights etc. – all depending on your systems configuration.

Below are the two scripts – I hope this helps some of you. The generated .BAK files can simply be restored in SQL services via the GUI cause they are native SQL backup files.

June 19, 2018 by recommendations scripts server

SQL Database backup monitoring

SQL Database backup monitoring

The following article was originally posted here by myself: https://kb.paessler.com/en/topic/79665-sql-database-backup-monitoring

SQL backups and their monitoring is one of the most important things. We often talk about rather complex situations including transaction-logfiles and various other stuff.

Monitoring those things was something that did cost us to many sensors with the standard-scripts etc. and was not really effective.

In order to change this – here are two scripts that will be able to solve most of your issues – you find them both at the end of this posting:

  • SQLBackupDestinationCheck.vbs
  • SQL_Database_Full_Backups.sql

SQLBackupDestinationCheck.vbs: This is a VBS script that will return XML content to Paessler/PRTG in multiple channels while using one sensor.

It expects three parameters:

  • go through first level sub folders: 0 (no) or 1 (yes)
  • file extension to obey – any other extension will be ignored – in most cases: “bak”
  • Path – should mostly be an UNC path

It will return those channels:

  • Total file count: count of all files with this extension in all folders checked
  • Total folder count: count of all folders checked
  • Oldest file found in days: oldest file – value gives back age in days
  • Newest file found in days: newest file – value gives back age in days
  • Lowest files in folder count found: lowest count of files that have been found in one folder
  • Highest files in folder count found: max. files that have been found in one folder

This needs some explanation:
The script checks a path for files with a certain extension. Let’s say you do SQL maintenance plans and use the extension .BAK to write those. You do a daily backup and keep them for 3 days to make sure they end up on a tape, further do you use sub-folders per database and you have a total of 5 databases on this system – now you will need to configure error-limits per channel – e.g.:

  • Total file count: lower limit: 10 files – upper limit: 20 files – during the backup you might have up to 20 files
  • Total folder count: 5 folders upper and lower limit – more/less then 5 would mean something changed
  • Oldest file found in days: lower limit 2 days – upper limit 4 days – older then 4 would mean the cleanup does not work
  • Newest file found in days: lower limit 0 days – upper limit 2 days – nothing newer (date issues? and nothing older as well)
  • Lowest files in folder count found: lower limit: 2 – there should be always more then 2x .BAK files in any subfolder
  • Highest files in folder count found: upper limit: 4 – anything above again would mean some clean up is not working right for one database

So – keep in mind – you can get more fancy with WARNING limits and ERROR limits – the example above will help you understand what to do – this should help you getting started. The script will save you quite a few sensors and still keep a pretty close watch on the file-system side of SQL backups – of course you could abuse it for something else then SQL backups as well – but this was my main intent for this script.
SQL_Database_Full_Backups.sql
This file will request information about backups for SQL itself. It might need a SQL 2005 or newer to work – and yes – I did post this on another PRTG KB thread – but I wanted to have the complete solution in this one post.

The script will be executed against the SQL server instance the databases reside, on the master-database. You need to specify a parameter that will be set as “@MaxHours” – this actually should be something like 26 hours, so your SQL backups are never exciting 26 hours – giving the backup some time to run as well. More for bigger databases might be necessary. If you do multiple full-backups per day, set it to e.g. 2 hours or what ever your limit is.

You will get backup 3x columns:

TotalAmountOfDatabasesTotal amount of databases of this server – this allows you not only to watch if anyone created/deleted a database on the server, it also gives you a good base-line in general
RecentlyBackupUpCounHow many databases have been backed up recently – full backup – in specified time-window
NOTRecentlyBackupUpCountHow many have not been backed up in the same time window

RecentlyBackupUpCount and NOTRecentlyBackupUpCount should always match up to TotalAmountOfDatabases – but that’s not the point. More important is – you might have backed up databases and not backed up databases – set you error-limits for all three columns accordingly – upper and lower limit – and you will see that the alert will fire if you add a database or keep the SQL agent service stopped so it hops over a single backup and misses it…

Folder: C:\Program Files (x86)\PRTG Network Monitor\Custom Sensors\EXEXML
File: SQLBackupDestinationCheck.vbs

Folder: C:\Program Files (x86)\PRTG Network Monitor\Custom Sensors\sql\mssql
File: SQL_Database_Full_Backups.sql

June 1, 2018 by monitoring prtg recommendations scripts
